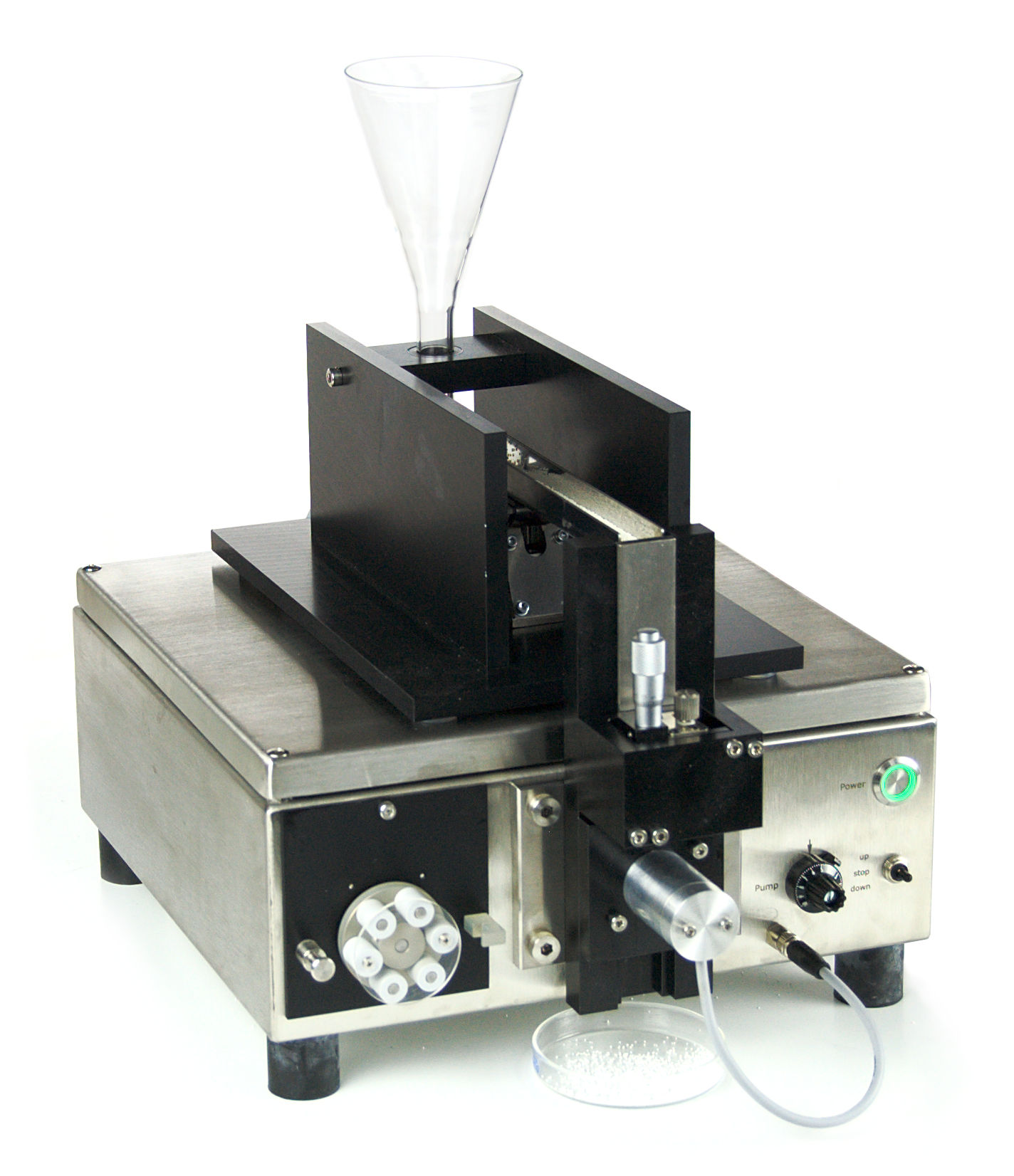

XPT - CP particle analyser for powder sample measurements
Working principle XPT-CP: The powder sample is filled in a funnel. The vibrating feeder controlled by the image analysis software is dosing the powder through the analysis cell. The particles are falling through the focussing range of the CCD camera continuously taking images which are analysed and displayed online. Results are particle size and shape distributions: diameter, length, thickness, roundness…
Flexibility for powders and suspensions: The XPT-CP unit can be transformed into a XPT-C system for measurement of suspensions simply by exchanging the flow through cell.
Complete system including stainless steel housing with camera, vibrating feeder unit and controller, flow through cell for powders with lighting by high power LED, PC and software.
- Housing dimensions: 300 x 300 x 120mm plus measurement cell
- Measurement range: 10 micrometer - 3mm
- Free flowing powders and granulates
- Measurement of particle size and shape distribution
- Detection of foreign particles by shape
- Food, Chemicals, Pharma, Detergents, Granulates
- Instant drink granulates, fertilizer, washing powder
XPT - CV particle size and shape analyser for online powder measurement
Working Principle XPT-CV: Particles are sucked through the measurement cell by a venturi system. A CCD camera in the housing is continuously taking images which are analysed and displayed online. Results are particle size and shape distributions: diameter, length, thickness, roundness…
Closed system: The XPT-CV system is working in a closed loop. The powder sample is fed back into the process. The housing of the unit is IP65.
Complete system including stainless steel housing with camera, vibrating feeder unit and controller, flow through cell for powders with lighting by high power LED, PC and software.
- Housing dimensions 300 x 300 x 120mm plus measurement cell
- Measurement range: 10 micrometer - 3mm
- Free flowing powders and granulates
- Measurement of particle size and shape distribution
- Detection of foreign particles by shape
- Food, Chemicals, Pharma, Detergents, Granulates
- Ground coffee, instant drink granulates, fertilizer, washing powder
XPT - CPL particle size and shape analyser for big particles (dry)
Working principle XPT-CP: The powder sample is filled in a funnel. The vibrating feeder controlled by the image analysis software is dosing the powder through the analysis cell. The particles are falling through the focussing range of the CCD camera continuously taking images which are analysed and displayed online. Results are particle size and shape distributions: diameter, length, thickness, roundness…
Alternatively: Online measurement in a particle stream
Complete system including stainless steel housing with camera, vibrating feeder unit and controller, lighting by xenon flash, PC and software
- Housing dimensions 700 x 300 x 120mm
- Measurement range: 50 micrometer - 30mm
- Big particles and granulates
- Measurement of particle size and shape distribution
- Detection of foreign particles by shape
- Iron ore, green pellets, stones, ceramics
