Working principle XPT-C: particle supsension is pumped through the flow-through cell on the outside of the unit - either directly from a process or from a sample. A CCD camera continuously takes images at a rate of 30 frames per second, which are analysed in real time and results displayed and saved.

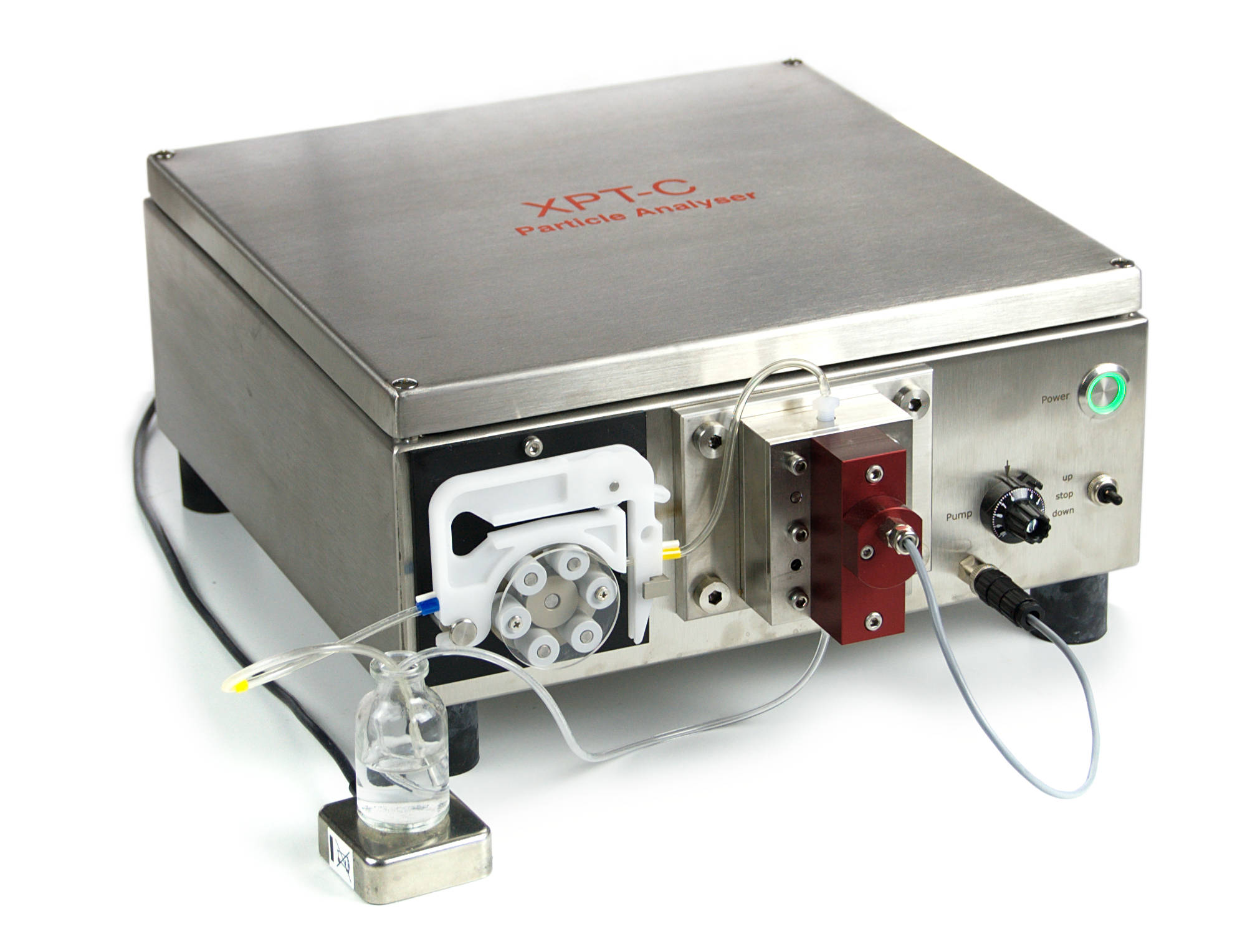

Complete system: consists of stainless steel housing with camera and lighting system by high-power LED, flow-through cell, peristaltic pump, magnetic stirrer, controll system, PC and software.

Measurement range: from 1 micron upwards, maximum resolution 0.5 micron/Pixel

Technical data:
• Minimum sample size: 1ml
• Housing dimensions 380 x 300 x 120mm
• Material: stainless steel
• Power supply 115/230V, optional 12V rechargeable battery

Applications:
• Particles, droplets or bubbles in liquid
• Measurement of particle size, shape and count
• Particle shape detection
• High pressure / high temperature
• Adhesives, epoxy resins
• Counting product beads into vials
• Detection of micrometer particles in highly concentrated submicron dispersions
• Particles in hot engine oil online under pressure
• Counting of fibres in other particle suspension
• Tracking Osswald ripening of crytall needles
• Measurement of shape change of grinding particles
• Food, pharma, polymers, chemicals, oils...
• Bubbles in soda and beer or bubblefree measurement under pressure
• Yeast cells in wheat beer
• Shaving foam, whipped cream
• Microencapsulation

New options !:
• Heated flow-through cell for measurement in melts
• Polarized light for online discrimination of amorphous and crystalline particles
• High pressure measurement cells: 10bar, 40bar, 100bar..
